TPK-JIC KIT

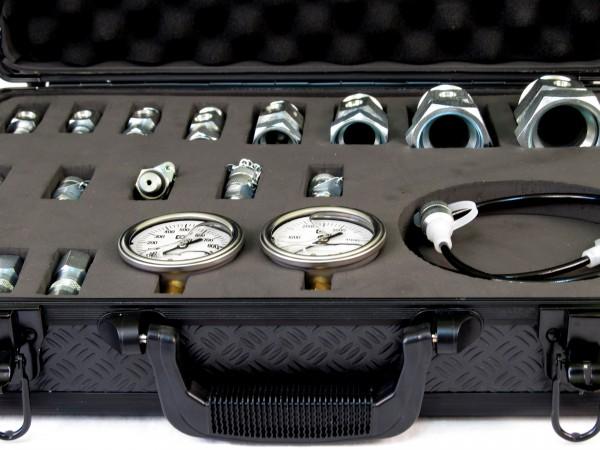

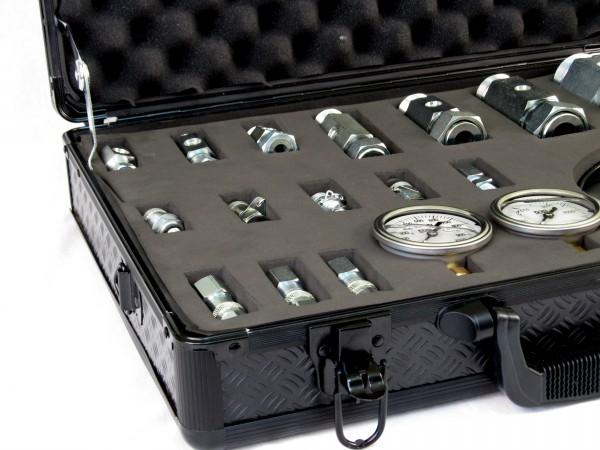

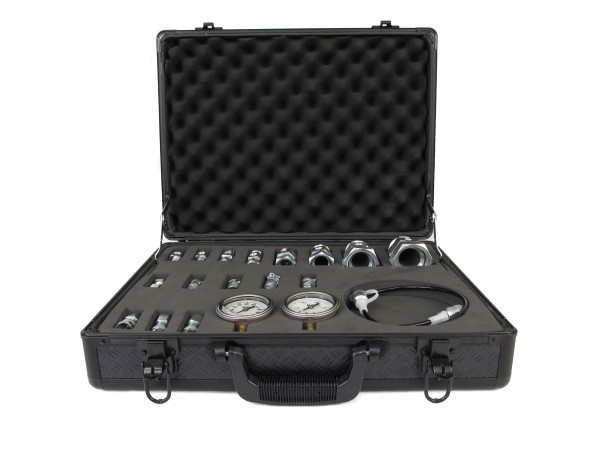

Test Point Kit - JIC Fittings
PART NUMBER: TPK-JIC KIT
The JIC Test Point Kit includes the items listed below.
| Part | Description | QTY |
| GP6504-04-04 | 4MJ-4FJX w/ -4 SAE PORT | 1 |
| GP6504-06-06 | 6MJ-6FJX w/ -4 SAE PORT | 1 |
| GP6504-08-08 | 8MJ-8FJX w/ -4 SAE PORT | 1 |
| GP6504-10-10 | 10MJ-10FJX w/ -4 SAE PORT | 1 |
| GP6504-12-12 | 12MJ-12FJX w/ -4 SAE PORT | 1 |
| GP6504-16-16 | 12MJ-12FJX w/ -4 SAE PORT | 1 |
| GP6504-20-20 | 20MJ-20FJX w/ -4 SAE PORT | 1 |
| GP6504-24-24 | 24MJ-24FJX w/ -4 SAE PORT | 1 |
| HGCP-04 | 1/4 NPT Gauge Connector | 1 |
| PGL-LM25-MP4-01000-SS | GAUGE 1000 PSI 2.5" DIAL 4MP LOWER MOUNT | 1 |
| PGL-LM25-MP4-05000-SS | GAUGE 5000 PSI 2.5" DIAL 4MP LOWER MOUNT | 1 |
| TPP-04 | 1/4 NPT | 1 |
| TPO-04 | 4 Male O-Boss | 1 |
| TPM-10 | 10x1.0 MM | 1 |
| TPBP-04 | 1/4 BSPP | 1 |
| GCP-04 | 1/4 NPT Direct Gauge Connector | 1 |
| MBH-162-32 | M16x2.0 Female x Female 32" Long | 1 |
Weight_uom:lbs
