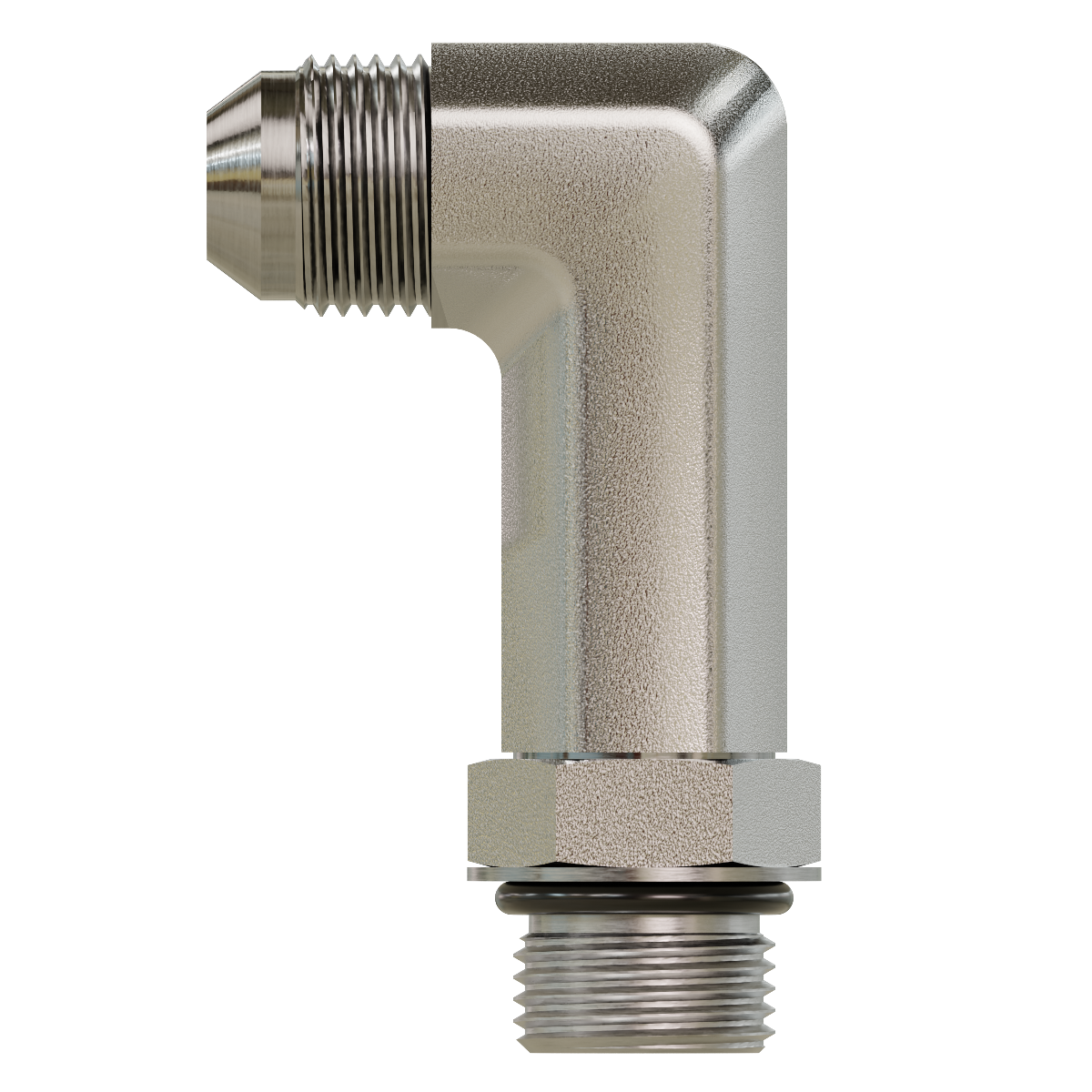

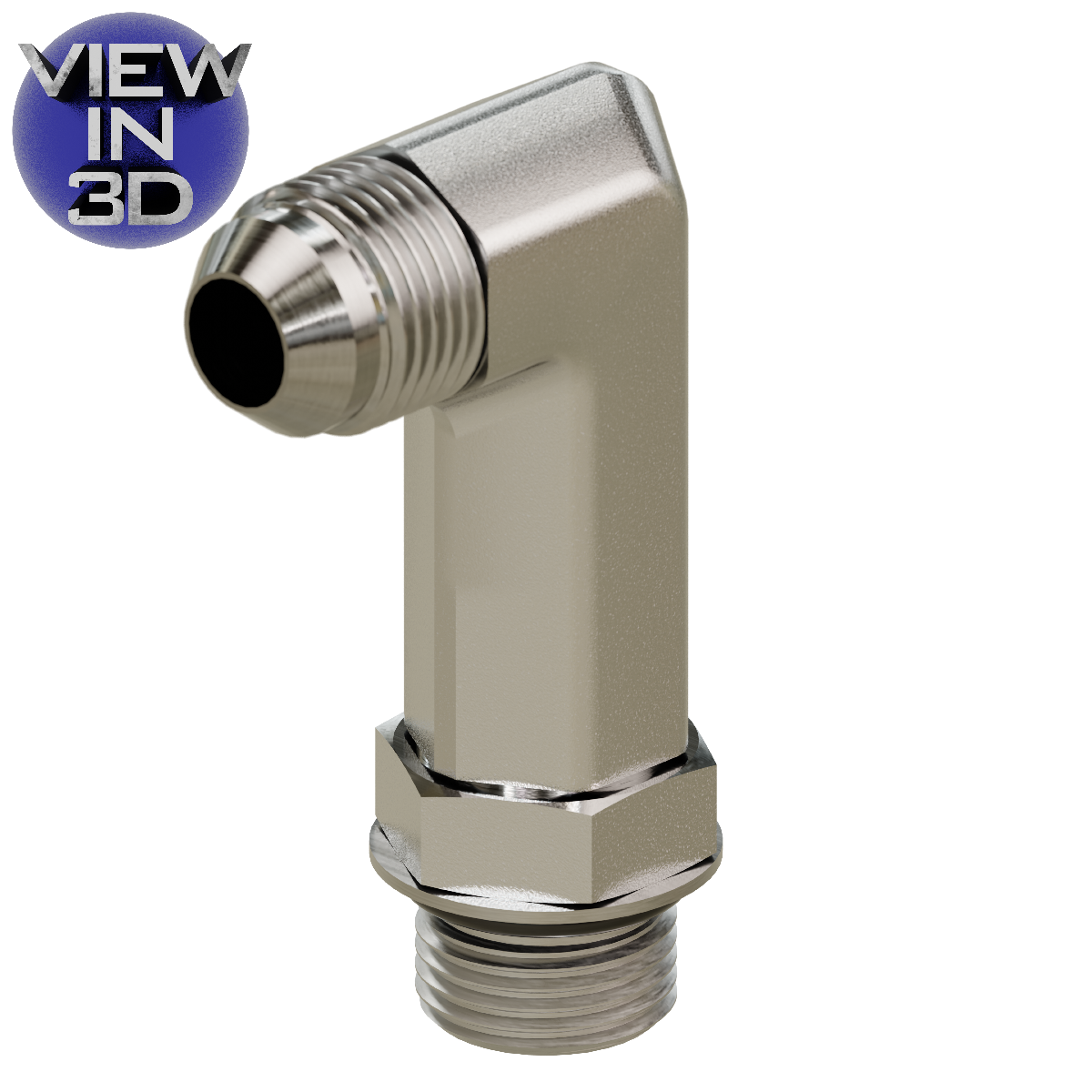

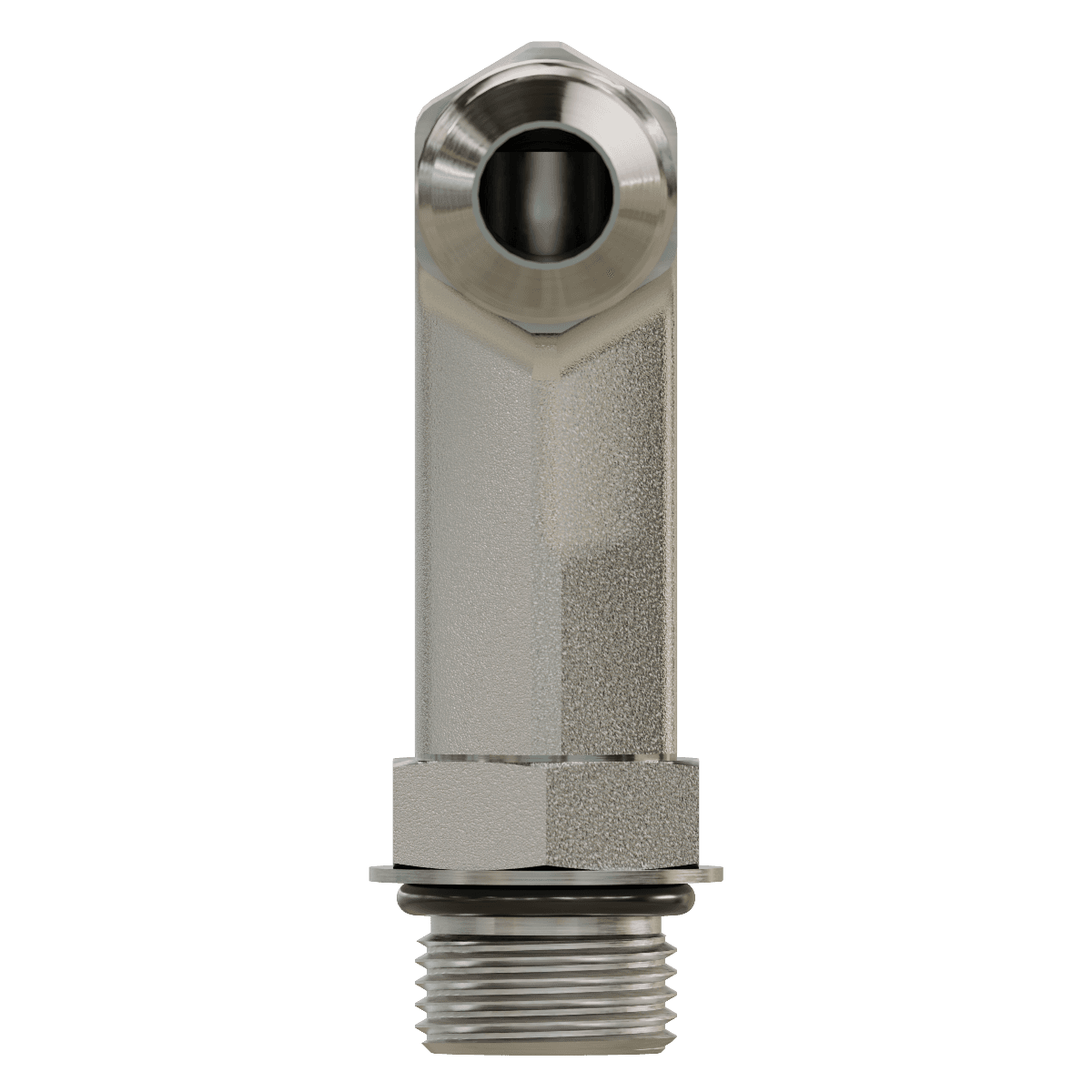

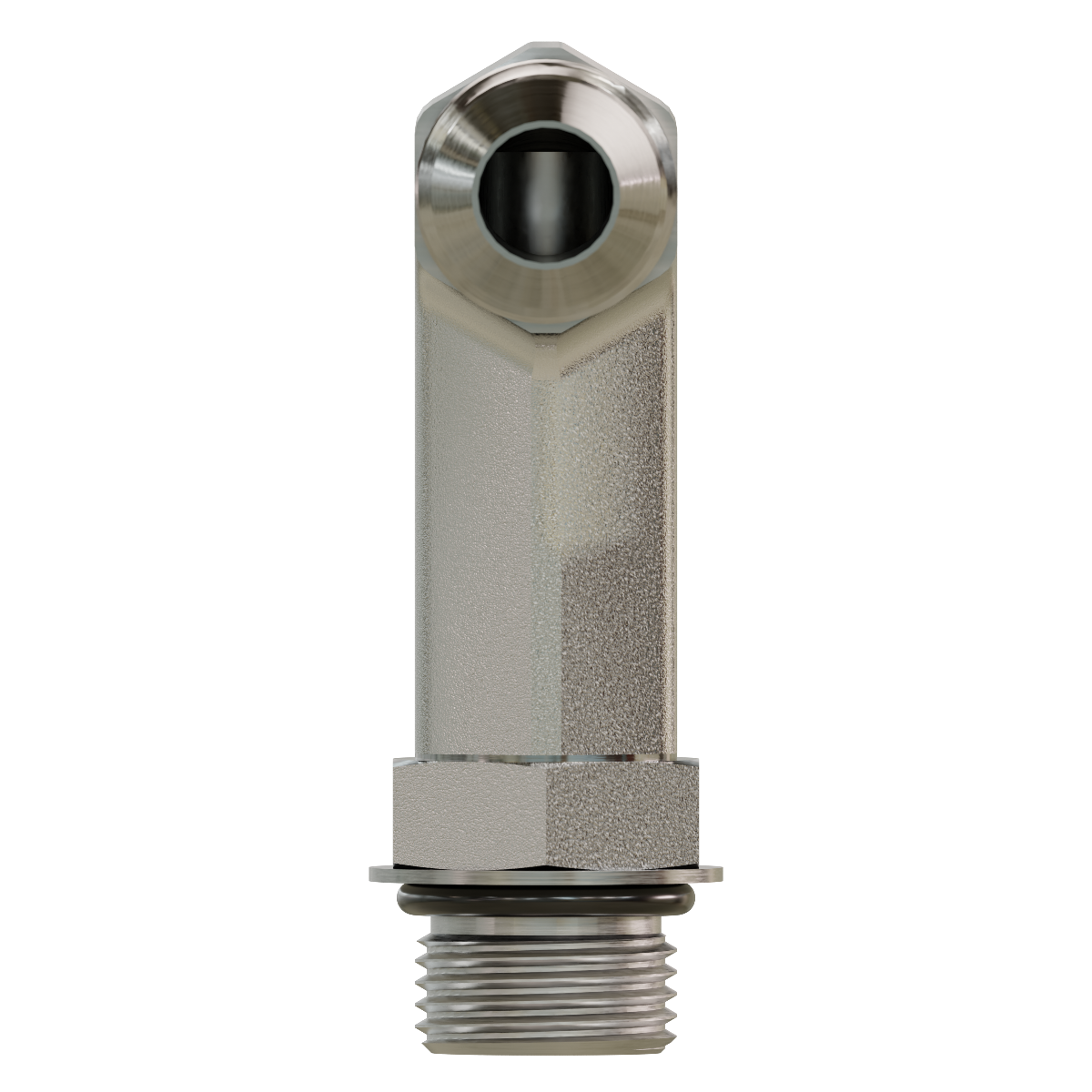

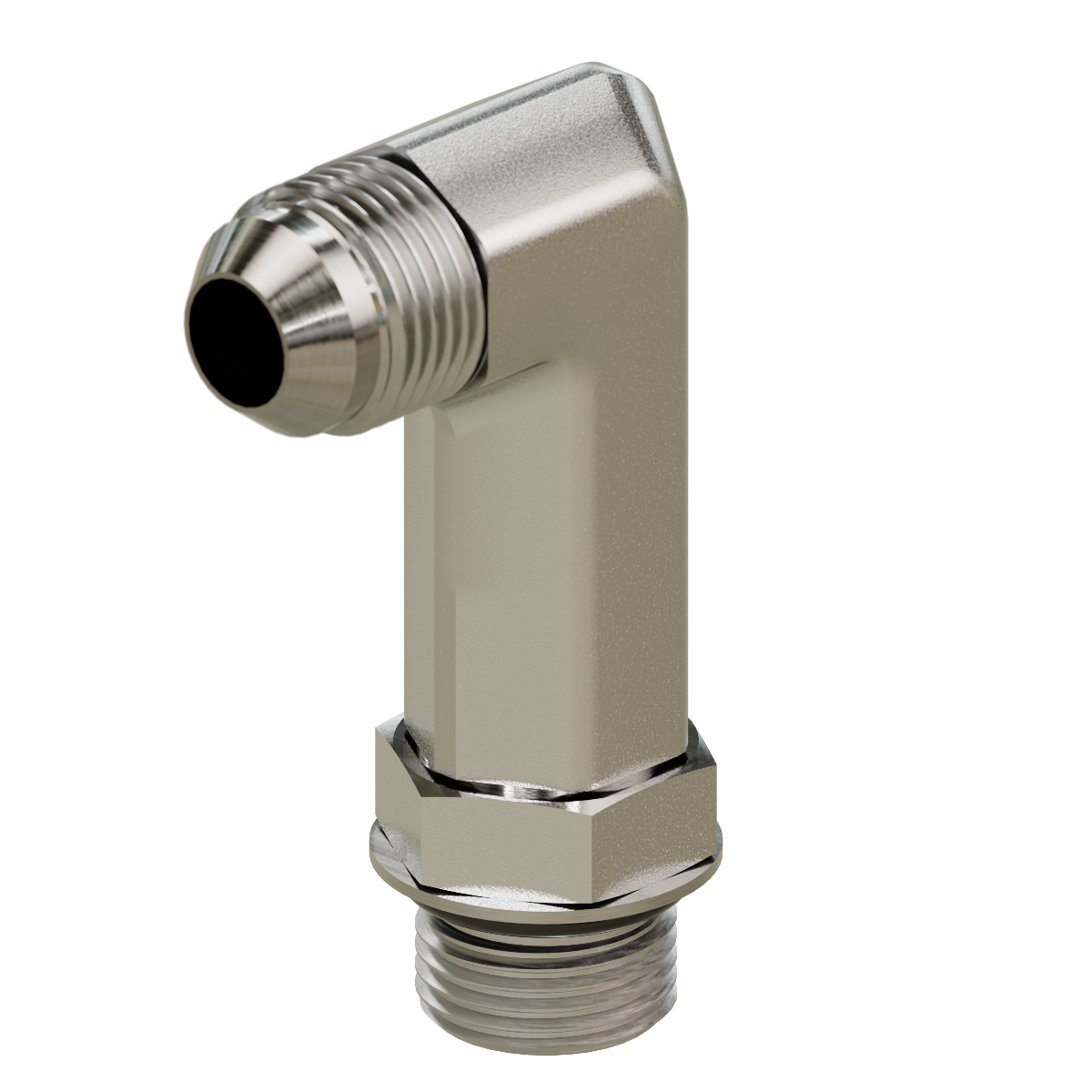

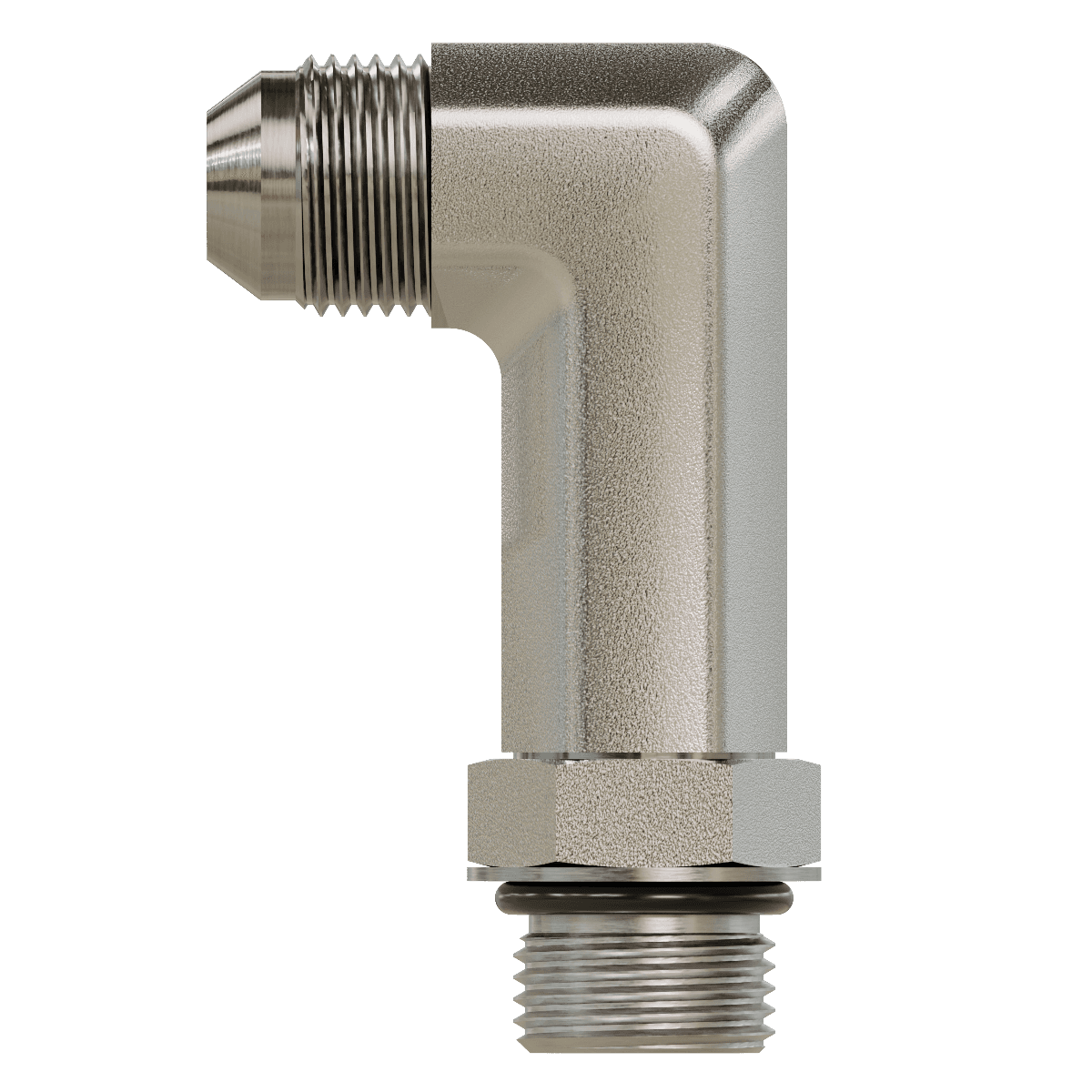

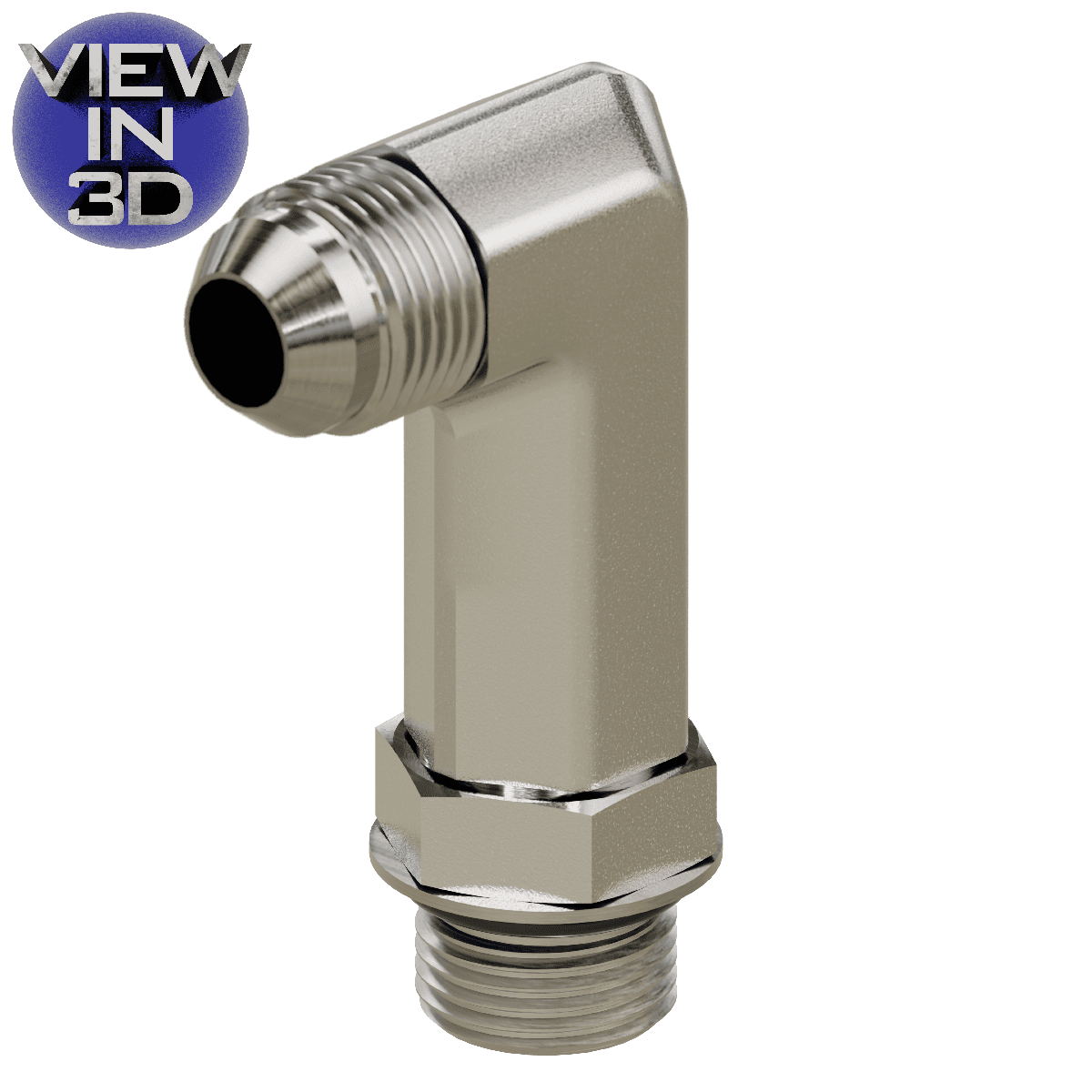

JIC to O-Ring - Extra Long Elbow 90°
JIC to O-Ring - Extra Long Elbow 90°
JIC to O-Ring - Extra Long Elbow 90°
JIC to O-Ring - Extra Long Elbow 90°

6801-LL

JIC to O-Ring - Extra Long Elbow 90°

PART NUMBER: 6801-LL

Material

Thread 1 Nominal Size

Thread 2 Nominal Size

Drop Length

Drop Length = Middle of JIC to End of Male O-Ring Threads.

Drop length:3.34
Material:Domestic Steel
Thread 1 Nominal Size:12
Thread 1 Type:Male JIC
Thread 2 Nominal Size:12
Thread 2 Type:Male O-Ring
JIC Adapter Bin LabelJIC Adapter SpecificationsMethods for Installing Fittings

Login to get access to more resources

Additional Bin Labels, Data Sheets, Product Documents, Pricing Documents and more can be found in the Resources section.
